2024 Lincoln Nautilus Power Seats Wiring Diagrams

Diagrams in this package (8)

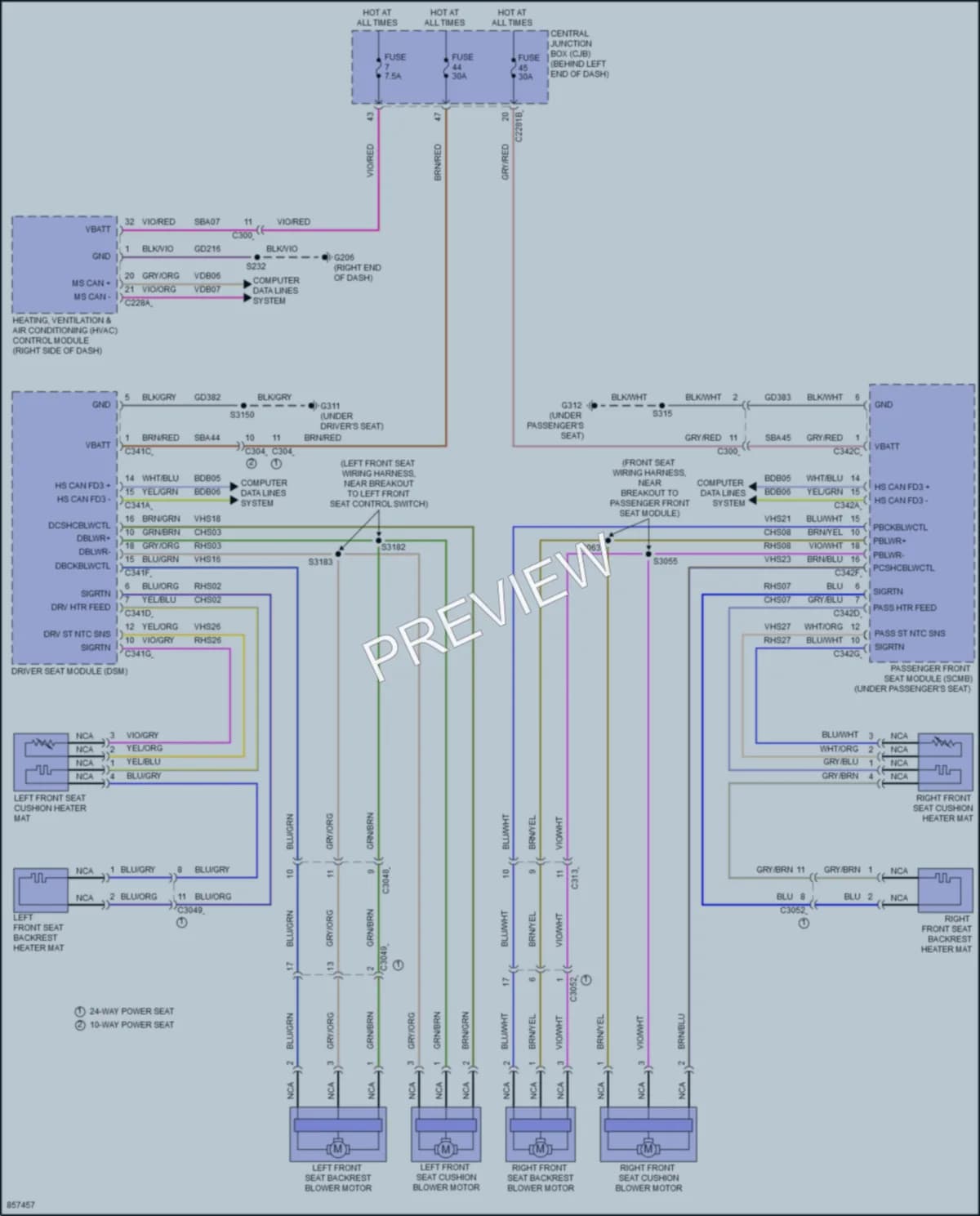

1. Fig. 134Front Climate Control Seats Circuit
2. Fig. 135Front Multicontour seats Circuit
3. Fig. 136Heated Steering Wheel Circuit
4. Fig. 137Power Folding Seats Circuit
5. Fig. 138Rear Climate Control Seats Circuit
6. Fig. 139Rear Multicontour seats Circuit
7. Fig. 140Rear Power Seat Circuit (1 of 2)
8. Fig. 141Rear Power Seat Circuit (2 of 2)
