2024 Jeep GrandCherokeeL Power Seats Wiring Diagrams

Diagrams in this package (18)

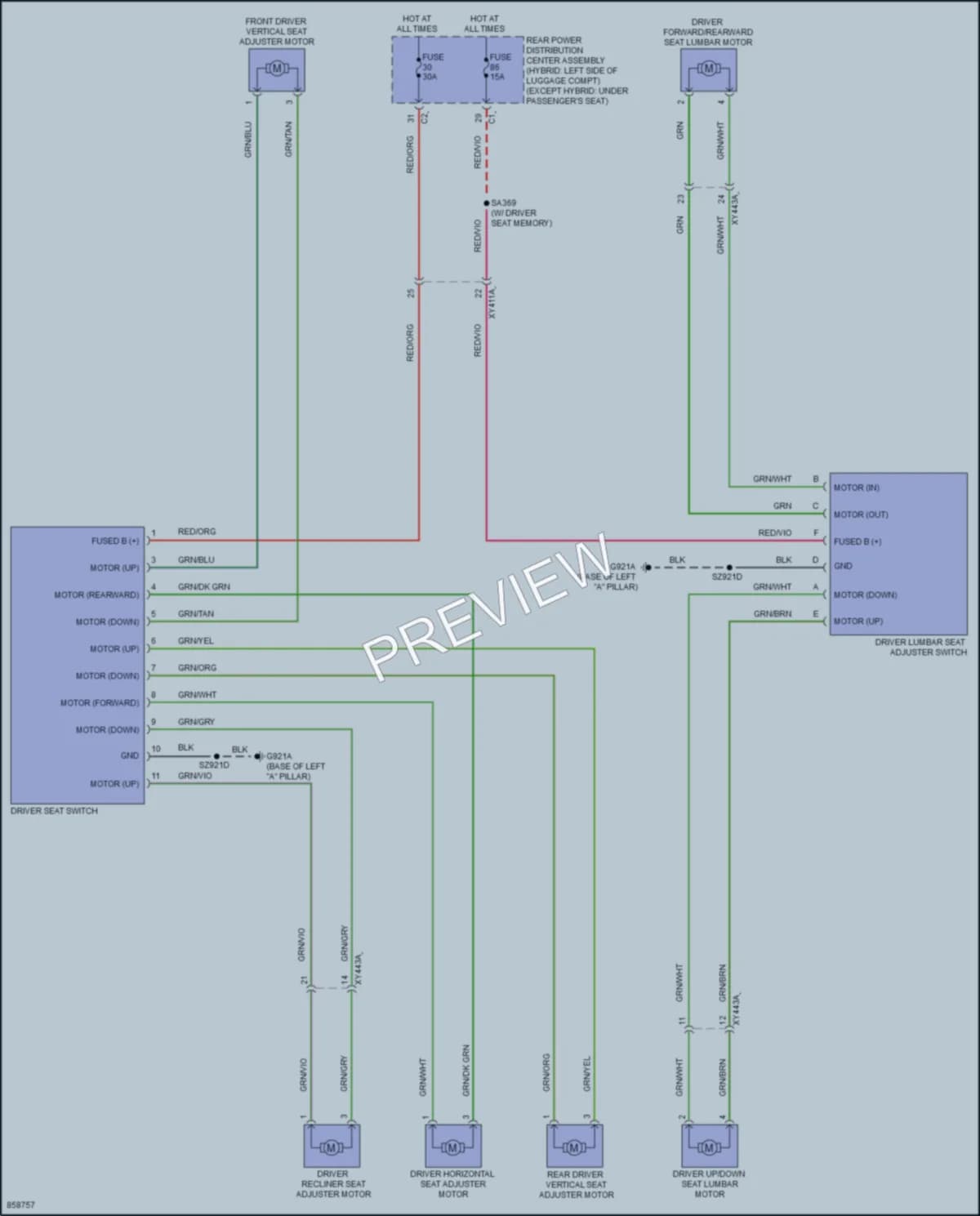

1. Fig. 133Driver Power Seat Circuit
2. Fig. 134Front Heated Seats Circuit w/ Ventilation (1 of 2)
3. Fig. 135Front Heated Seats Circuit w/ Ventilation (2 of 2)
4. Fig. 136Front Heated Seats Circuit w/o Ventilation
5. Fig. 137Heated Steering Wheel Circuit
6. Fig. 138Massage Seats Circuit (1 of 2)
7. Fig. 139Massage Seats Circuit (2 of 2)
8. Fig. 140Passenger Power Seat Circuit
9. Fig. 141Rear Heated Seats Circuit w/ Ventilation Third Row Seat (1 of 2)
10. Fig. 142Rear Heated Seats Circuit w/ Ventilation Third Row Seat (2 of 2)
11. Fig. 143Rear Heated Seats Circuit w/ Ventilation w/o Third Row Seat (1 of 2)
12. Fig. 144Rear Heated Seats Circuit w/ Ventilation w/o Third Row Seat (2 of 2)
13. Fig. 145Rear Heated Seats Circuit w/o Ventilation Third Row Seat (1 of 2)
14. Fig. 146Rear Heated Seats Circuit w/o Ventilation Third Row Seat (2 of 2)
15. Fig. 147Rear Heated Seats Circuit w/o Ventilation w/ Third Row Seat (1 of 2)
16. Fig. 148Rear Heated Seats Circuit w/o Ventilation w/ Third Row Seat (2 of 2)
17. Fig. 149Second Row Folding Seat Circuit
18. Fig. 150Third Row Folding Seat Circuit
