2023 Hyundai Ioniq6 Body Control Modules Wiring Diagrams
5 Body Control Modules wiring diagrams cataloged for the 2023 Hyundai Ioniq6. Includes Body Control Module Circuit, IPS Control Module Circuit, Integrated Control Unit Circuit. Review the protected preview and vehicle details before ordering.
System
Body Control Modules
Included
5 wiring diagrams
Delivery
Private digital delivery after payment
What this package covers
This listing is tied to one catalog record, not a generic vehicle page. Check the fitment fields, diagram count, representative filename, and preview against the vehicle you are repairing before purchase.
Catalog fitment: 2023 Hyundai Ioniq6
Electrical system: Body Control Modules
5 diagram files in this system package

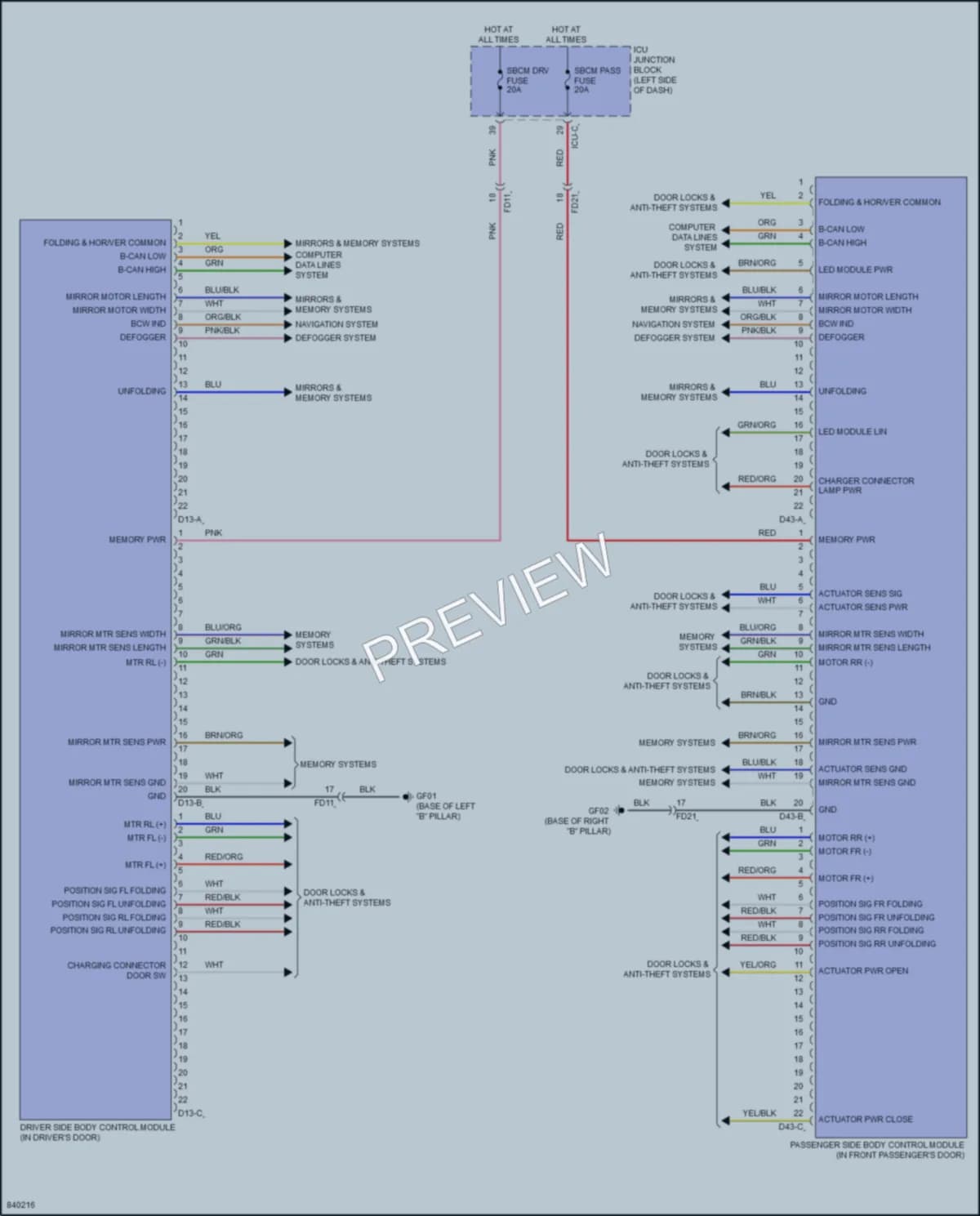

Representative file: Fig._20_Body_Control_Module_Circuit.svg
Diagrams in this package (5)
- Fig. 20Body Control Module Circuit
- Fig. 21IPS Control Module Circuit (1 of 2)
- Fig. 22IPS Control Module Circuit (2 of 2)
- Fig. 23Integrated Control Unit Circuit (1 of 2)
- Fig. 24Integrated Control Unit Circuit (2 of 2)
