2023 Audi A6
2023 Audi A6 Navigation Wiring Diagrams
30 Navigation wiring diagrams cataloged for the 2023 Audi A6. Includes Emergency Call Circuit w/ Connect Plus, Emergency Call Circuit w/o Connect Plus, Lane Change Assistance Circuit and 10 more. Review the protected preview and vehicle details before ordering.
System
Navigation
Included
30 wiring diagrams
Delivery
Private digital delivery after payment
What this package covers
This listing is tied to one catalog record, not a generic vehicle page. Check the fitment fields, diagram count, representative filename, and preview against the vehicle you are repairing before purchase.
Catalog fitment: 2023 Audi A6
Electrical system: Navigation
30 diagram files in this system package

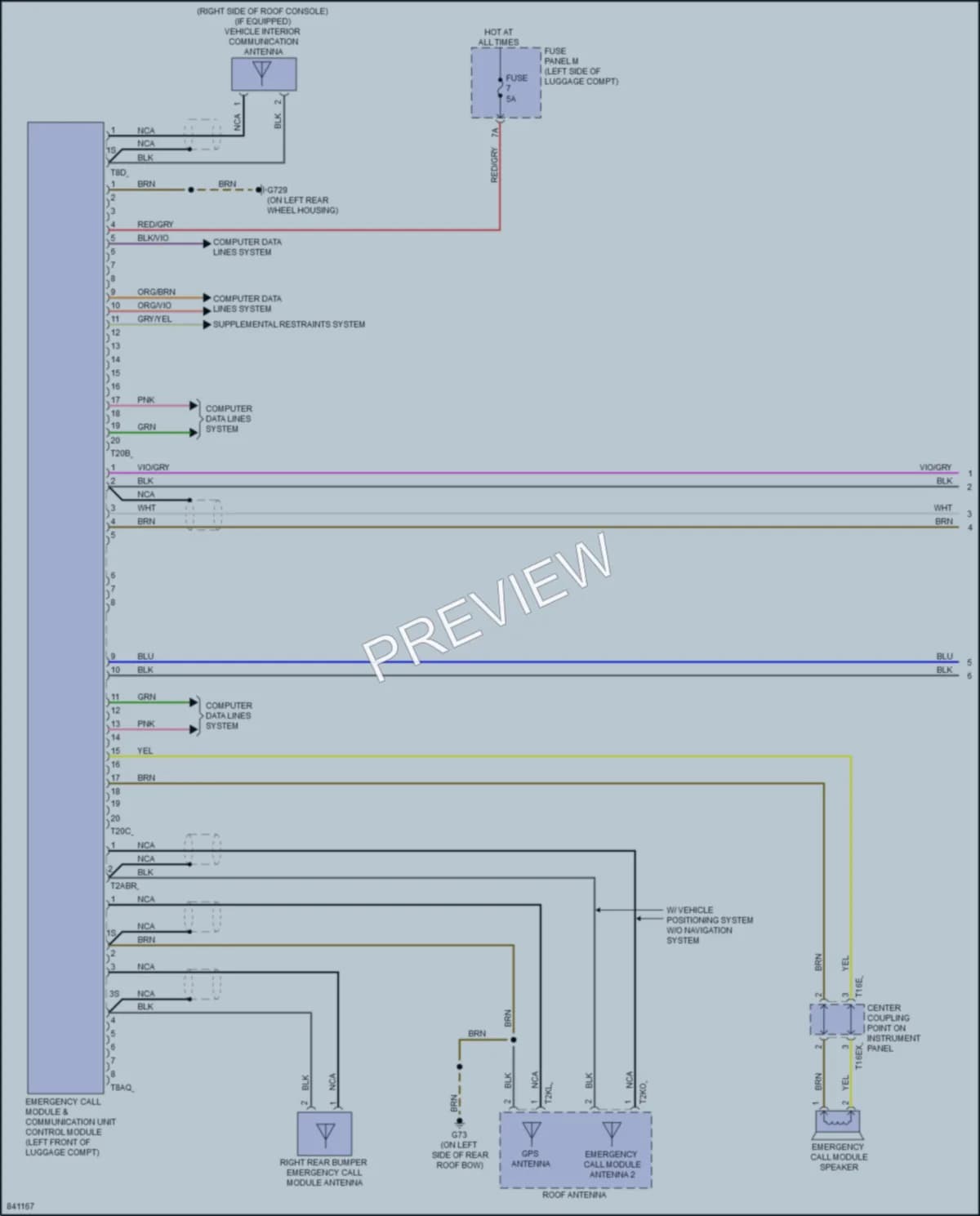

Representative file: Fig._131_Emergency_Call_Circuit_W_Connect_Plus_1_of_2.svg
Diagrams in this package (30)
- Fig. 131Emergency Call Circuit w/ Connect Plus (1 of 2)
- Fig. 132Emergency Call Circuit w/ Connect Plus (2 of 2)
- Fig. 133Emergency Call Circuit w/o Connect Plus (1 of 2)
- Fig. 134Emergency Call Circuit w/o Connect Plus (2 of 2)
- Fig. 135Lane Change Assistance Circuit
- Fig. 136Lane Departure Warning Circuit
- Fig. 137Navigation Circuit w/ Amplifier Bang Olufsen Sound (1 of 6)
- Fig. 138Navigation Circuit w/ Amplifier Bang Olufsen Sound (2 of 6)
- Fig. 139Navigation Circuit w/ Amplifier Bang Olufsen Sound (3 of 6)
- Fig. 140Navigation Circuit w/ Amplifier Bang Olufsen Sound (4 of 6)
- Fig. 141Navigation Circuit w/ Amplifier Bang Olufsen Sound (5 of 6)
- Fig. 142Navigation Circuit w/ Amplifier Bang Olufsen Sound (6 of 6)
- Fig. 143Navigation Circuit w/ Amplifier w/o Bang Olufsen Sound (1 of 6)
- Fig. 144Navigation Circuit w/ Amplifier w/o Bang Olufsen Sound (2 of 6)
- Fig. 145Navigation Circuit w/ Amplifier w/o Bang Olufsen Sound (3 of 6)
- Fig. 146Navigation Circuit w/ Amplifier w/o Bang Olufsen Sound (4 of 6)
- Fig. 147Navigation Circuit w/ Amplifier w/o Bang Olufsen Sound (5 of 6)
- Fig. 148Navigation Circuit w/ Amplifier w/o Bang Olufsen Sound (6 of 6)
- Fig. 149Navigation Circuit w/o Amplifier (1 of 4)
- Fig. 150Navigation Circuit w/o Amplifier (2 of 4)
- Fig. 151Navigation Circuit w/o Amplifier (3 of 4)
- Fig. 152Navigation Circuit w/o Amplifier (4 of 4)
- Fig. 153Object Detection Circuit
- Fig. 154Parking Assistant Circuit w/ Parallel Parking Driver Assistance (1 of 2)
- Fig. 155Parking Assistant Circuit w/ Parallel Parking Driver Assistance (2 of 2)
- Fig. 156Parking Assistant Circuit w/ Parallel Parking w/o Driver Assistance (1 of 2)
- Fig. 157Parking Assistant Circuit w/ Parallel Parking w/o Driver Assistance (2 of 2)
- Fig. 158Parking Assistant Circuit w/o Parallel Parking
- Fig. 159Peripheral Camera Circuit
- Fig. 160Rear Camera Circuit
