2022 Volvo XC40 Navigation Wiring Diagrams

Diagrams in this package (9)

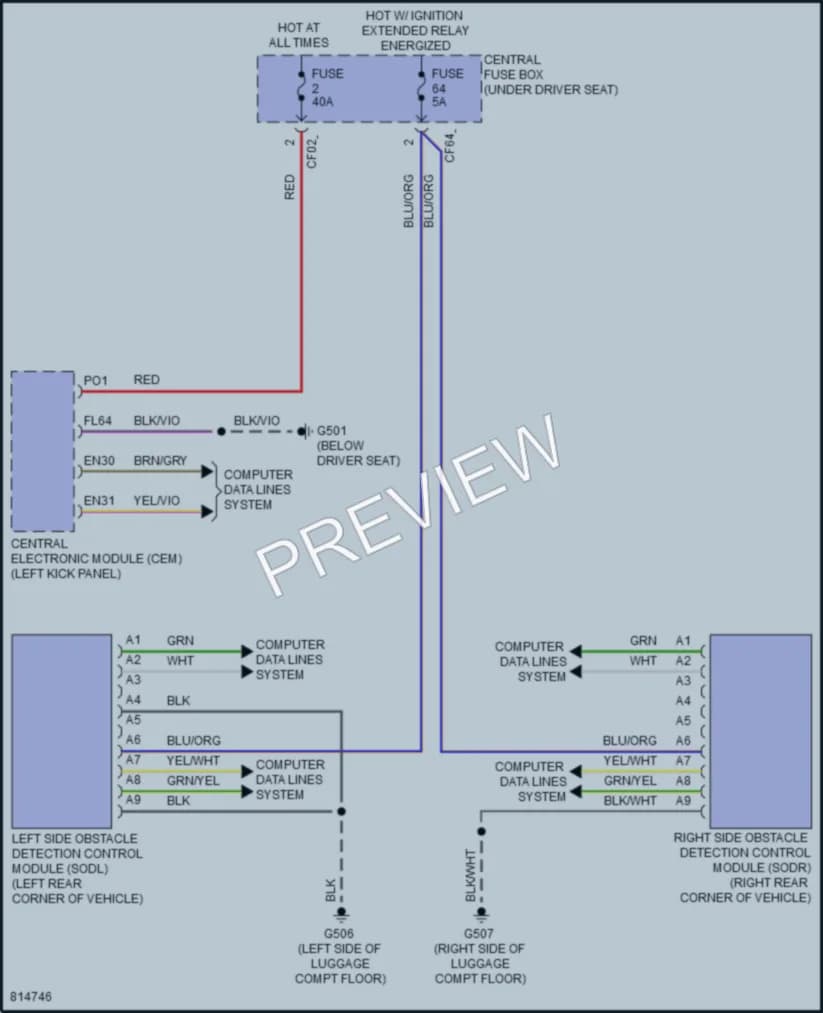

1. Fig. 42Blind Spot Monitoring Circuit
2. Fig. 43Navigation Circuit (1 of 5)
3. Fig. 44Navigation Circuit (2 of 5)
4. Fig. 45Navigation Circuit (3 of 5)
5. Fig. 46Navigation Circuit (4 of 5)
6. Fig. 47Navigation Circuit (5 of 5)
7. Fig. 48Parking Assistant Circuit
8. Fig. 49Parking Camera Circuit T4 FWD Momentum
9. Fig. 50Parking Camera Circuit T5 AWD Momentum
