2020 Kia OptimaHybrid Power Windows Wiring Diagrams

Diagrams in this package (12)

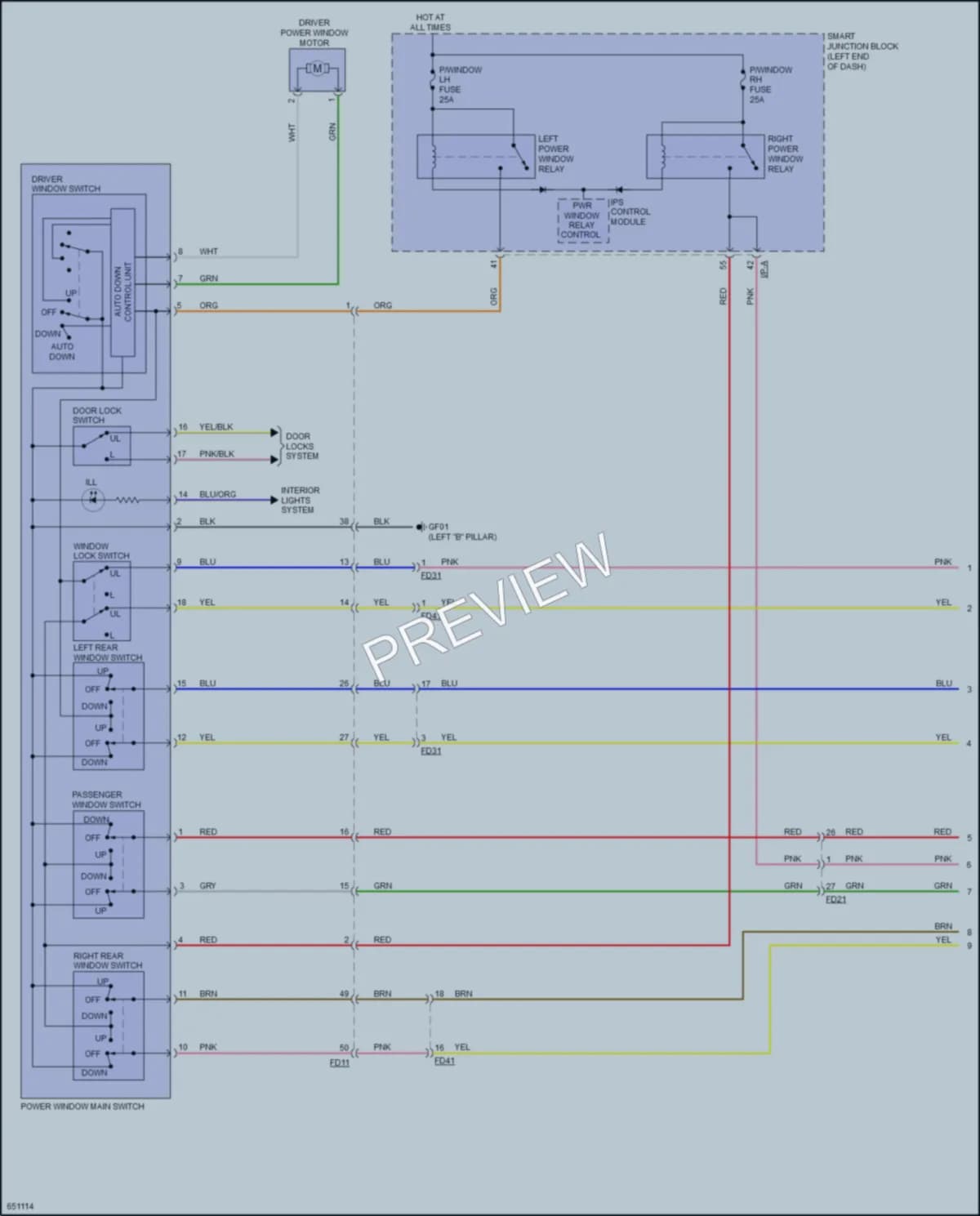

1. Fig. 289Power Windows Circuit Except Hybrid w/ Driver Auto Down (1 of 2)
2. Fig. 290Power Windows Circuit Except Hybrid w/ Driver Auto Down (2 of 2)
3. Fig. 291Power Windows Circuit Except Hybrid w/ IMS w/ Driver Passenger Auto Up Down Safety Power Windows (1 of 2)
4. Fig. 292Power Windows Circuit Except Hybrid w/ IMS w/ Driver Passenger Auto Up Down Safety Power Windows (2 of 2)
5. Fig. 293Power Windows Circuit Except Hybrid w/o IMS w/ Driver Auto Up Down Safety Power Windows (1 of 2)
6. Fig. 294Power Windows Circuit Except Hybrid w/o IMS w/ Driver Auto Up Down Safety Power Windows (2 of 2)
7. Fig. 295Power Windows Circuit Except Hybrid w/o IMS w/ Driver Passenger Auto Up Down Safety Power Windows (1 of 2)
8. Fig. 296Power Windows Circuit Except Hybrid w/o IMS w/ Driver Passenger Auto Up Down Safety Power Windows (2 of 2)
9. Fig. 297Power Windows Circuit Hybrid w/ IMS (1 of 2)
10. Fig. 298Power Windows Circuit Hybrid w/ IMS (2 of 2)
11. Fig. 299Power Windows Circuit Hybrid w/o IMS (1 of 2)
12. Fig. 300Power Windows Circuit Hybrid w/o IMS (2 of 2)
