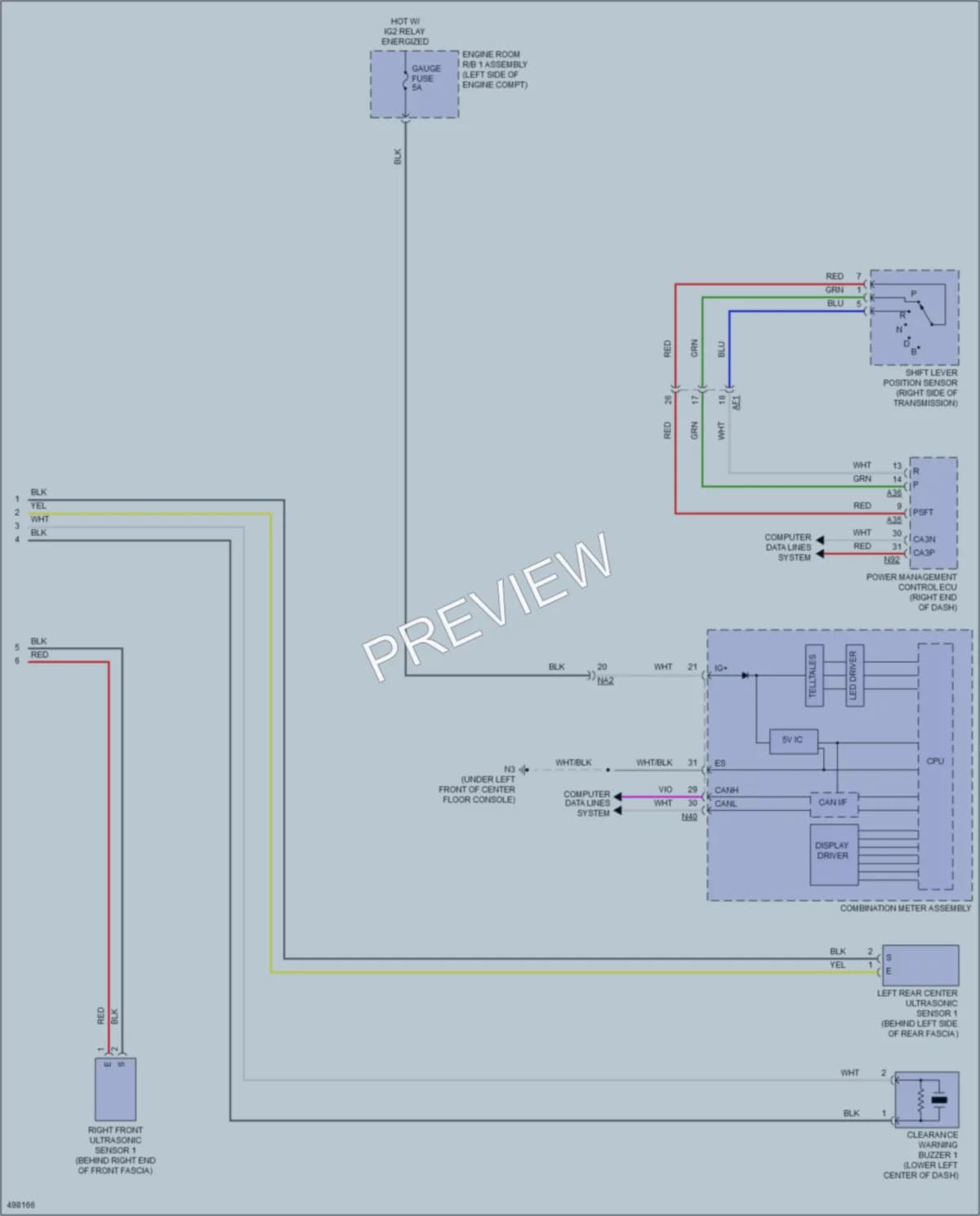

2016 Lexus GS450h Navigation Wiring Diagrams

Diagrams in this package (12)

1. Fig. 92Blind Spot Monitoring Circuit
2. Fig. 93Lane Departure Warning Circuit
3. Fig. 94Navigation Circuit (1 of 5)
4. Fig. 95Navigation Circuit (2 of 5)
5. Fig. 96Navigation Circuit (3 of 5)
6. Fig. 97Navigation Circuit (4 of 5)
7. Fig. 98Navigation Circuit (5 of 5)
8. Fig. 99Rear Sonar Circuit (1 of 2)
9. Fig. 100Rear Sonar Circuit (2 of 2)
10. Fig. 101Telematics Circuit (1 of 2)
11. Fig. 102Telematics Circuit (2 of 2)
12. Fig. 103Vehicle Proximity Notification Circuit
