2015 Infiniti Q60
2015 Infiniti Q60 Power Seats Wiring Diagrams
9 Power Seats wiring diagrams cataloged for the 2015 Infiniti Q60. Includes Climate Control Seats Circuit, Heated Seats Circuit Convertible, Heated Seats Circuit Coupe A T and 5 more. Review the protected preview and vehicle details before ordering.
System
Power Seats
Included
9 wiring diagrams
Delivery
Private digital delivery after payment
What this package covers
This listing is tied to one catalog record, not a generic vehicle page. Check the fitment fields, diagram count, representative filename, and preview against the vehicle you are repairing before purchase.
Catalog fitment: 2015 Infiniti Q60
Electrical system: Power Seats
9 diagram files in this system package

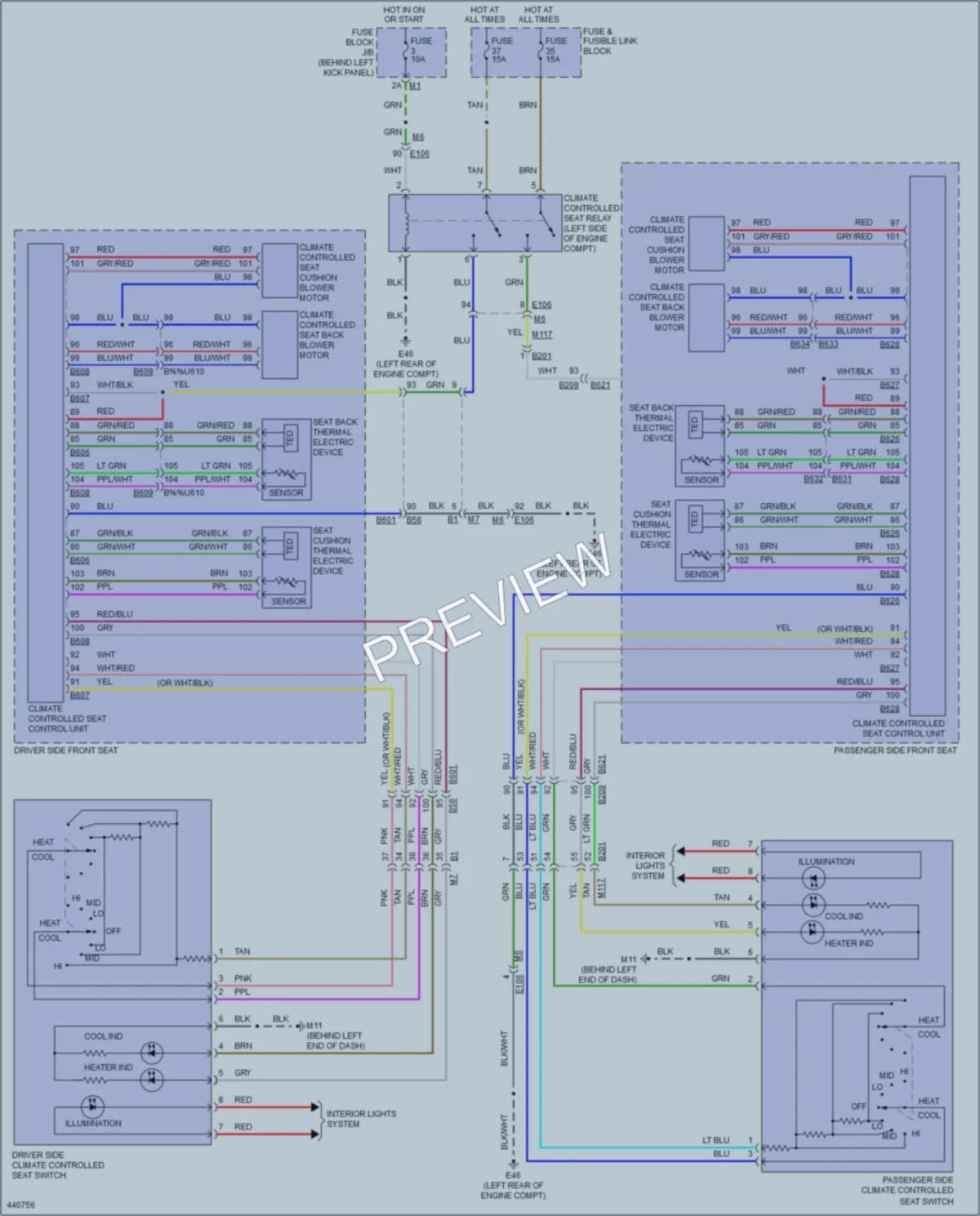

Representative file: Fig._81_Climate_Control_Seats_Circuit.svg
Diagrams in this package (9)
- Fig. 81Climate Control Seats Circuit
- Fig. 82Heated Seats Circuit Convertible
- Fig. 83Heated Seats Circuit Coupe A T
- Fig. 84Heated Seats Circuit Coupe M T
- Fig. 85Lumbar Circuit Convertible w/o Side Support
- Fig. 86Lumbar Circuit Coupe w/o Side Support
- Fig. 87Lumbar Circuit w/ Side Support
- Fig. 88Power Seats Circuit (1 of 2)
- Fig. 89Power Seats Circuit (2 of 2)
